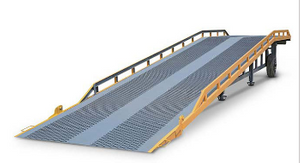

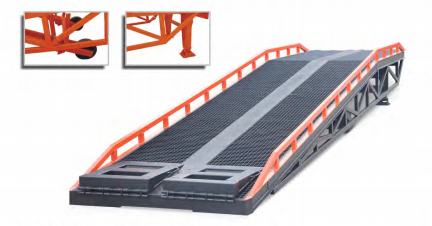

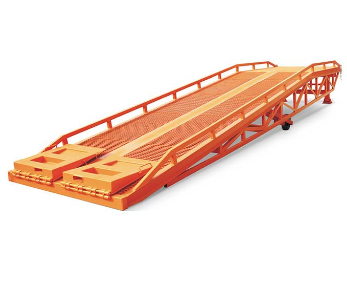

The mobile hydraulic dock ramp with manual hydraulic control, needn't other power and almost needn't maintenance. Through the use of manual pump, the tires can be rasied to lift-off when the mobile dock ramp is in use. And the tires can be let down when you need to move the dock ramp. It is also easy and convenient to move and change the working location of the dock ramp by the manpower or forklift traction.

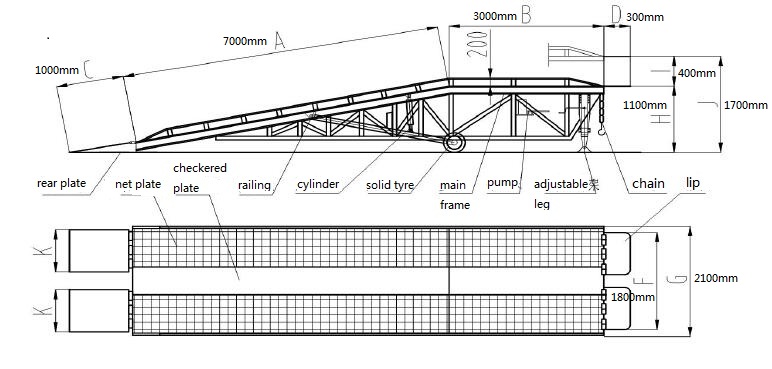

| Model | DCQH6-0.6 | DCQH8-0.6 | DCQH10-0.6 | |
| Capacity(kg) | 6000 | 8000 | 10000 | |
Platform size(mm) | A | 6000 | 6000 | 7000 |
| B | 3000 | 3000 | 3000 | |
| C | 1000 | 1000 | 1000 | |
| D | 300 | 300 | 300 | |
| E | 10300 | 10300 | 11300 | |
| F | 1800 | 1800 | 1800 | |
| G | 2100 | 2100 | 2100 | |
| H | 1100 | 1100 | 1100 | |
| I | 600 | 600 | 600 | |
| J | 1700 | 1700 | 1700 | |
